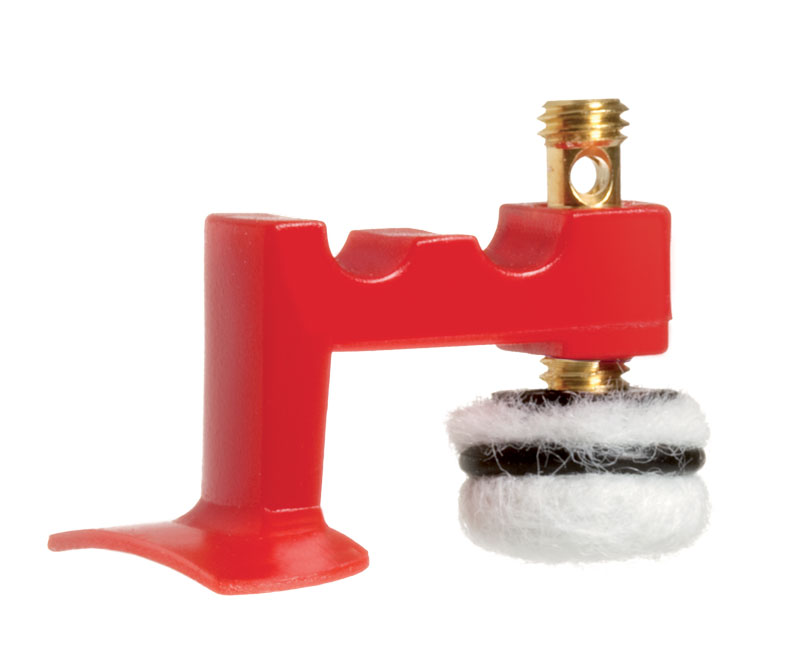

Bridge Electrodes
Bridge Electrode
The Bridge Electrodes are designed for optimal contact and signal stability during EEG recordings.
Each electrode features a gold screw ensuring high-quality electrical connection and a
screw adjustment system for precise positioning on the scalp.
The universal connector fits both 2 mm spring pins and crocodile clips,
while the bridge structure is made of soft, biocompatible material for patient comfort.
| Code | Electrode Material | Size | Bridge Color | Pack |
|---|---|---|---|---|
| BEG000A2 | Ag/AgCl Sintered | Adult | Red | 10 pcs |
| BEG000A7 | Ag/AgCl Sintered | Adult | Blue | 10 pcs |
| BEG000P4 | Ag/AgCl Sintered | Pediatric | Yellow | 10 pcs |
Connection Cables
The Connection Cables are designed for high flexibility and excellent conductivity.
Each cable is Tinsel-coated for maximum flexibility and durability,
while the silver conductors provide outstanding mechanical resistance
and superior electrical performance during EEG recordings.
| Code | Electrode Side | Headbox Side | Pack |
|---|---|---|---|
| BEC1226C1GS | Insulated Crocodile Ø 1.5 mm |
 Touch Proof Ø 1.5 mm |
10 pcs |
| BEC122326S | Spring 2 mm pin Ø 1.5 mm |
Touch Proof Ø 1.5 mm |
10 pcs |
| BEC122641S | Spring 4 mm pin Ø 1.5 mm |
Touch Proof Ø 1.5 mm |
10 pcs |
Cable Length: 120 cm
Available Colors:

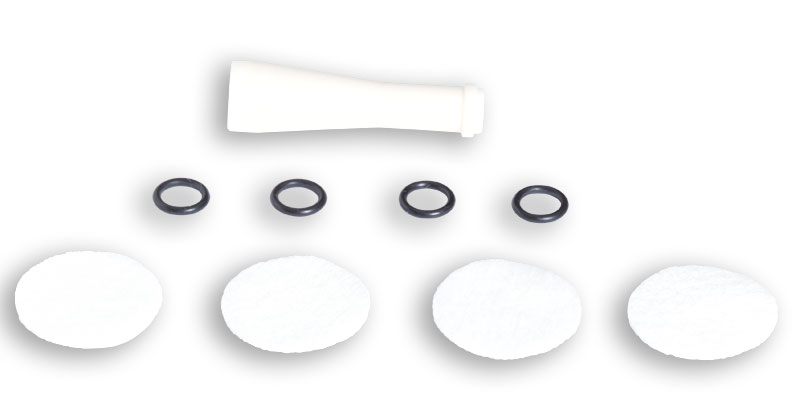

Assembling Kit for Bridge Electrodes
The Assembling Kit for Bridge Electrodes includes all the essential components
needed for electrode maintenance and assembly. Designed to ensure stability, comfort,
and reliable contact during EEG recordings.
| Code | Description | Pack |
|---|---|---|
| BCSET000 | Cotton pads, rubber rings and covering tool | 100 pcs |
Bridge Electrode Bowl
The Bridge Electrode Bowl is designed to securely hold bridge electrodes during EEG examinations.
Made of high-quality, biocompatible materials, it ensures safe and stable electrode placement,
providing optimal contact and comfort for the patient during use.
| Code | Description | Pack |
|---|---|---|
| EHOS00000 | Bridge Electrode Bowl | 1 pc |
Contact Echovision for access to our full range of medical products.
