EMG / Needle Electrodes

Myoline – Concentric Needle Electrode

Our new robotic sharpening provides excellent penetration of the needle and minimizes trauma for the patient.
Golden connector ensures the best signal recording quality.
100% quality control is performed on all manufactured needles.
Ergonomic handle with area indicator marker for precision and ease of use.

Code	Length	Diameter	Rec. Area (mm²)	Pack
D0390302511	25 mm	0.30 mm	0.02	25 pcs
D039035302	30 mm	0.35 mm	0.07	25 pcs
D0390453010	30 mm	0.45 mm	0.07	25 pcs
D039035408	40 mm	0.35 mm	0.07	25 pcs
D0390454014	40 mm	0.45 mm	0.07	25 pcs
D039045504	50 mm	0.45 mm	0.07	25 pcs
D039060706	75 mm	0.60 mm	0.07	25 pcs

Single Fiber Needle Electrode

Designed with a recording area positioned on a small side opposite to the cutting edge and close to the tip for precision measurements.
The Macro version is manufactured with an insulated cannula for specialized clinical and research applications.

Code	Length	Diameter	Model	Rec. Area (mm²)	Pack
DSFN380452506	25 mm	0.45 mm	Single Fiber	0.0005	5 pcs
DSFN380453707	37 mm	0.45 mm	Single Fiber	0.0005	5 pcs
DSFN380453705	37 mm	0.45 mm	Macro	20	5 pcs

Connection Cable

Connection cables for Concentric and Single Fiber electrodes.
Made with extra flexible material and moulded connection for durability and ease of use.
Different lengths and connectors are available on request for compatibility with any EMG equipment.
The Macro needle requires a special cable (code: 100000NNHFM).

Code	Cable Length	Connectors	Pack
10000NNHF3	100 cm	5 pole DIN	1 pc
100200NNHF3	200 cm	5 pole DIN	1 pc

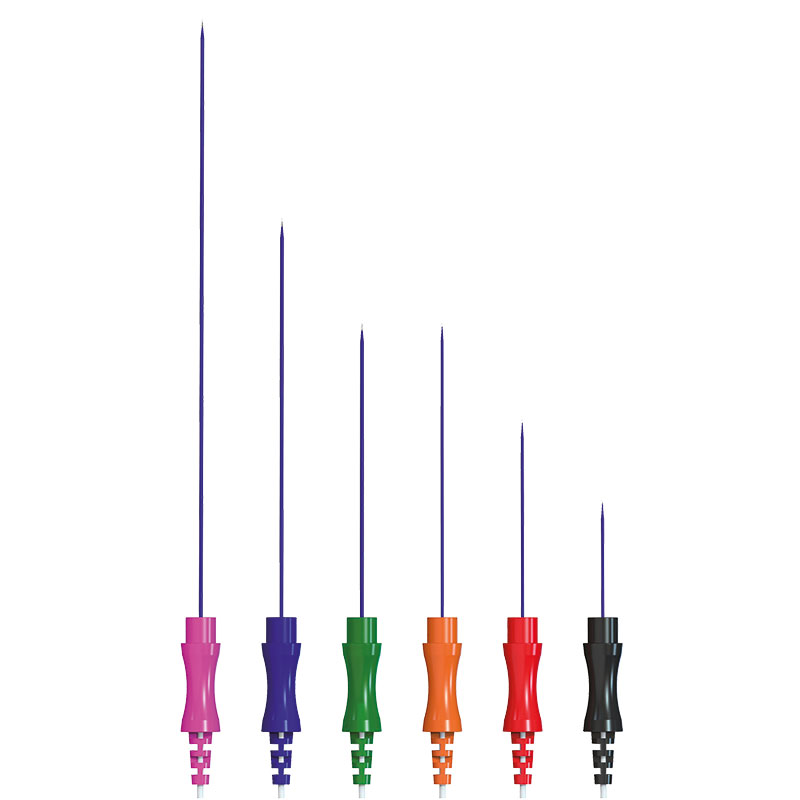

Monopolar Needle Electrode

Isolation and precise sharpening ensure excellent recording quality and maximum smoothness during insertion.
The ergonomic moulded handgrip provides better handling and control for clinical use.

Code	Length	Diameter	Rec. Area (mm²)	Pack
TFDN261500	15 mm	0.35 mm	0.28	25 pcs
TFDN262500	25 mm	0.35 mm	0.28	25 pcs
TFDN263700	37 mm	0.35 mm	0.28	25 pcs
TFDN263745	37 mm	0.45 mm	0.34	25 pcs
TFDN265045	50 mm	0.45 mm	0.34	25 pcs
TFDN267545	75 mm	0.45 mm	0.34	25 pcs

Connector: Touch Proof Ø 1.5 mm DIN 42802

Cable Length: 76 cm

MIOBOT – Injectable Needle Electrode

Consistent moulded connector ensures the best handgrip and stability during procedures.
Equipped with a stable Touch Proof DIN 42802 connector and a safe luer lock connection for the syringe.
Features an ultra-sharp needle tip for minimal trauma and an isolated cannula providing a precise recording point on the tip.

Code	Length	Diameter	Pack
MIOBOT1330	13 mm	0.30 mm	10 pcs
MIOBOT2530	25 mm	0.30 mm	10 pcs
MIOBOT2540	25 mm	0.40 mm	10 pcs
MIOBOT3745	37 mm	0.45 mm	10 pcs
MIOBOT5050	50 mm	0.45 mm	10 pcs
MIOBOT7570	75 mm	0.70 mm	10 pcs

Connector: Touch Proof Ø 1.5 mm DIN 42802

Extensions for EMG Needles

Extension cables for EMG needles — designed for flexibility, durability and signal integrity.
Different lengths and connectors are available on request, ensuring compatibility with any EMG equipment.

Code	Cable Length	Pack
MNC10DDIN6	100 cm	1 pc
MNC20DDIN6	200 cm	1 pc
MNC10DDINSH	100 cm Shielded	1 pc
MNC20DDINSH	200 cm Shielded	1 pc

Connector: Touch Proof Ø 1.5 mm DIN 42802

Contact Echovision for access to our full range of medical products.
