Cup Electrodes

The EEG Cup Electrodes are made of pure silver (Ag 999.99‰) to ensure exceptional signal quality.
Equipped with Touchproof connectors for secure, long-term use and high-flexibility cables for maximum durability and comfort during EEG recordings.

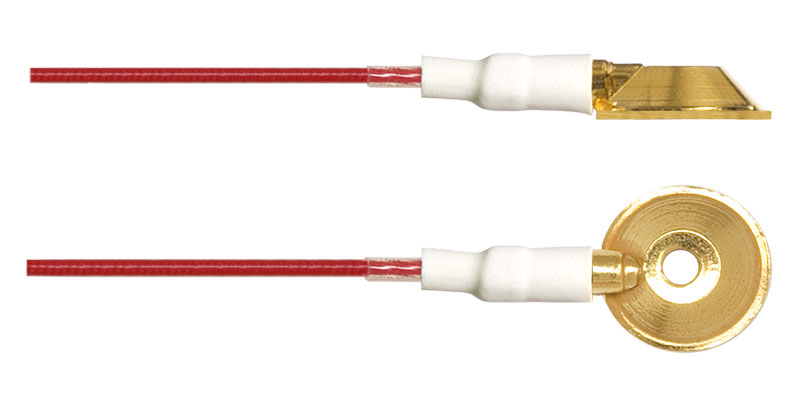

Moulded

The Moulded EEG Cup Electrodes feature a moulded cable-electrode connection that ensures high mechanical strength and long-lasting durability during EEG recordings. Designed for consistent performance and excellent signal transmission.

Code	Material	Cup Diameter	Cable Length	Pack
DAGM102600	AgAgCl	10 mm	100 cm	10 pcs
DAGM152600	AgAgCl	10 mm	150 cm	10 pcs
DAGM252600	AgAgCl	10 mm	250 cm	10 pcs
DEGM102600	Au	10 mm	100 cm	10 pcs
DEGM152600	Au	10 mm	150 cm	10 pcs
DEGM252600	Au	10 mm	250 cm	10 pcs

Connector: Touch Proof Ø 1.5 mm DIN 42802

Pack of 10 cup electrodes are available in the following colors:

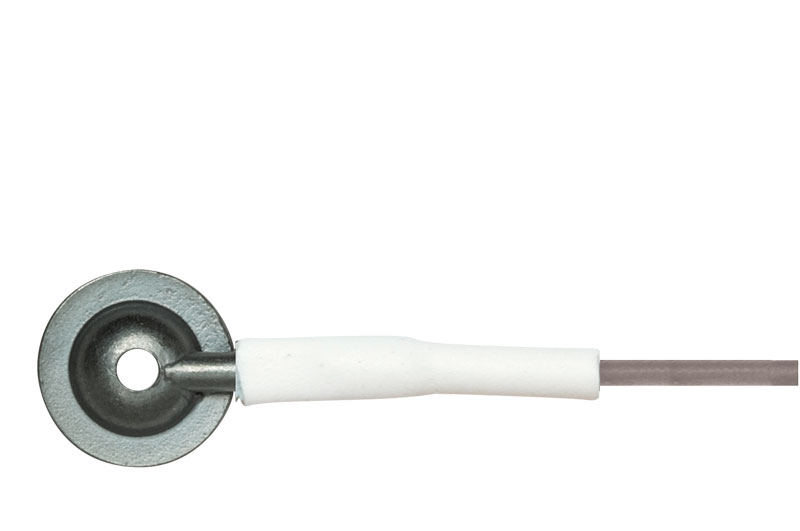

Disposable Cup Electrodes

The Disposable Cup Electrodes are available in single-use integrated cable or reusable detachable cable configurations. They are lightweight, practical, and made with high-quality AgAgCl surfaces to ensure the best possible signal recording and patient comfort during EEG sessions.

Code	Electrode Material	Cup Diameter	Cable Length	Box
DAGD102600	AgAgCl	10 mm	100 cm	10 pcs
DAGD152600	AgAgCl	10 mm	150 cm	10 pcs
DAGD252600	AgAgCl	10 mm	250 cm	10 pcs

Connector: Touch Proof Ø 1.5 mm DIN 42802

Pack: 10 cup electrodes, available in the following colors:

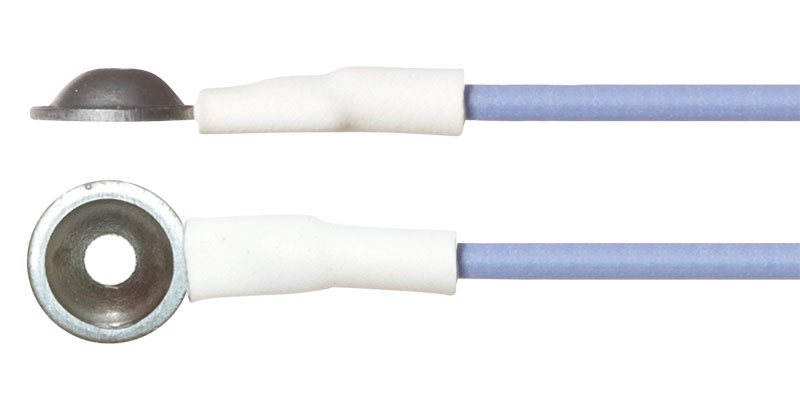

Casted EEG Cup Electrodes

The Casted EEG Cup Electrodes feature an ideal cable-electrode connection designed to prevent water contact and ensure high mechanical strength during use. They offer reliable performance and consistent signal quality in demanding EEG recording environments.

Code	Material	Cup Diameter	Cable Length	Pack
DSCS102600	AgAgCl	10 mm	100 cm	10 pcs
DSCS152600	AgAgCl	10 mm	150 cm	10 pcs
DSCS252600	AgAgCl	10 mm	250 cm	10 pcs
DSGS102600	Au	10 mm	100 cm	10 pcs
DSGS152600	Au	10 mm	150 cm	10 pcs
DSGS252600	Au	10 mm	250 cm	10 pcs

Connector: Touch Proof Ø 1.5 mm DIN 42802

Pediatric EEG Cup Electrodes

The Pediatric EEG Cup Electrodes are specifically designed for pediatric patients. Their reduced 6 mm diameter allows for accurate recordings in more focused areas, ensuring comfort and high-quality signal acquisition during EEG examinations.

Code	Material	Cup Diameter	Cable Length	Pack
DAGS102606	AgAgCl	6 mm	100 cm	10 pcs
DAGS152606	AgAgCl	6 mm	150 cm	10 pcs
DEGS102606	Au	6 mm	100 cm	10 pcs
DEGS152606	Au	6 mm	150 cm	10 pcs

Connector: Touch Proof Ø 1.5 mm DIN 42802

Pack: 10 cup electrodes, available in the following colors:

LTM (Long Term Monitoring) EEG Cup Electrodes

The LTM EEG Cup Electrodes are specifically designed for long-term EEG recordings. Featuring an ultra-thin Teflon cable for flexibility and durability, and an autoclavable electrode structure for safe reuse, these electrodes provide consistent signal quality and patient comfort even in extended monitoring sessions.

Code	Material	Cup Diameter	Cable Length	Pack
DGAGAT102600	AgAgCl	10 mm	100 cm	10 pcs
DGAGAT152600	AgAgCl	10 mm	150 cm	10 pcs
DGAGAT252600	AgAgCl	10 mm	250 cm	10 pcs
DGGOAT102600	Au	10 mm	100 cm	10 pcs
DGGOAT152600	Au	10 mm	150 cm	10 pcs
DGGOAT252600	Au	10 mm	250 cm	10 pcs

Connector: Touch Proof Ø 1.5 mm DIN 42802

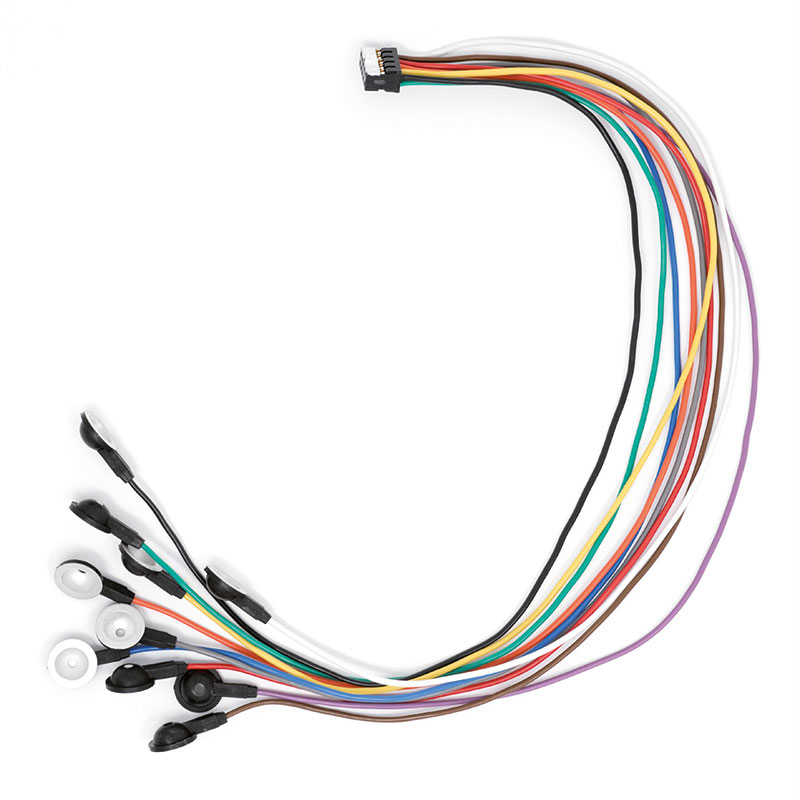

Disposable Electrodes Compatible for MRI

The Disposable Electrodes Compatible for MRI are designed for safe use during magnetic resonance imaging procedures. Their MRI-conditional multipole connector allows the electrodes to remain attached to the patient’s skin, eliminating the need for removal before scanning. These disposable AgAgCl electrodes ensure reliable signal quality and patient safety.

Code	Electrode Material	Number of Electrodes	Cup Diameter	Pack
DCPEX-21	AgAgCl (disposable)	21	10 mm	1 set
DCPEX-23	AgAgCl (disposable)	23	10 mm	1 set
DCPEX-25	AgAgCl (disposable)	25	10 mm	1 set
DCPEX-27	AgAgCl (disposable)	27	10 mm	1 set

Connector: Touch Proof Ø 1.5 mm DIN 42802

Contact Echovision for access to our full range of medical products.
