Otoscope
Crafted with high-quality materials and refined aluminium accents, this otoscope is as functional as it is visually distinctive. Each detail is designed to meet the highest professional standards in modern diagnostics.

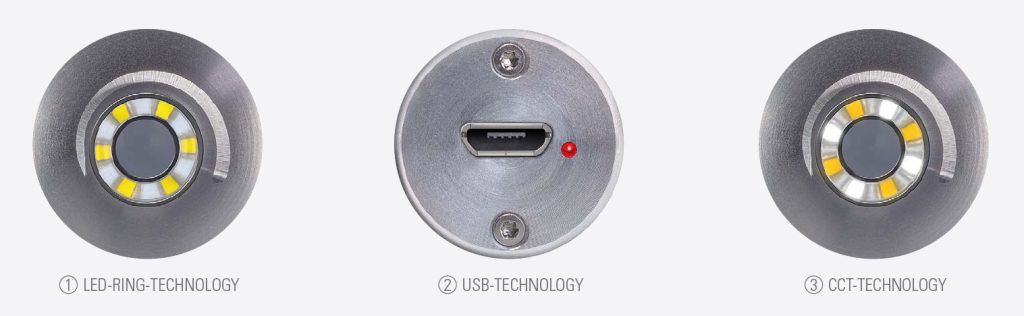

Key Technologies & Features

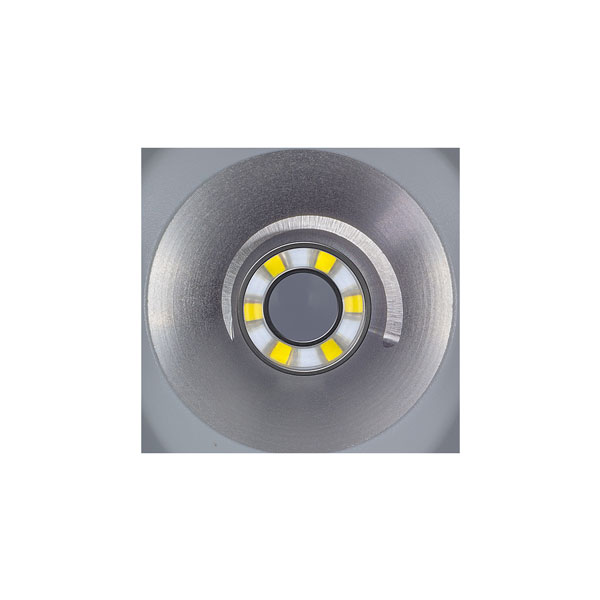

1. LED-Ring Technology
An exclusive LED-Ring illumination system eliminates the need for traditional fibre optics while maintaining an unobstructed field of view and optimal light distribution.
The constant-current driven LEDs ensure stable brightness and an exceptionally long service life — with no bulb replacements required.
2. USB Charging Technology
Integrated USB-charging capability allows direct charging via power supply or computer, removing the need for a docking station and making the device practical for mobile or clinical use.

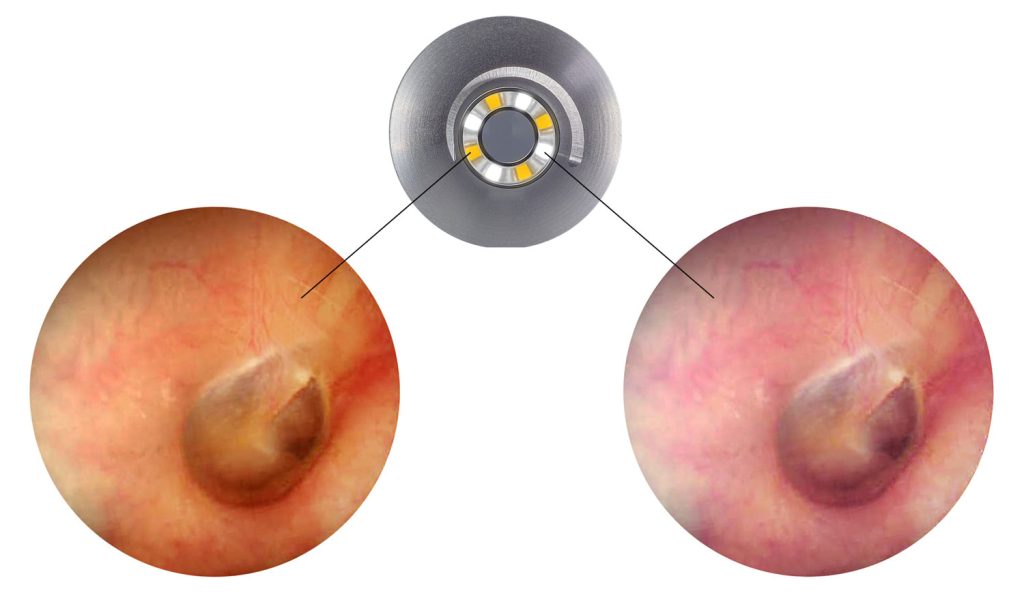

3. CCT Light Technology
The LuxaScope Auris CCT LED offers a revolutionary lighting system with dual-color temperature control (2 × 4 LEDs).
With a single button press, users can switch between:
-
Warm white light, comparable to traditional bulbs or gas-discharge lamps, providing natural illumination for standard otoscopic examinations.
-
Cold white light, enhancing contrast and revealing finer details — particularly useful for examining vascular structures and highly perfused tissue areas.
Focused on the essential. Crafted with precision.
Made by LUXAMED.

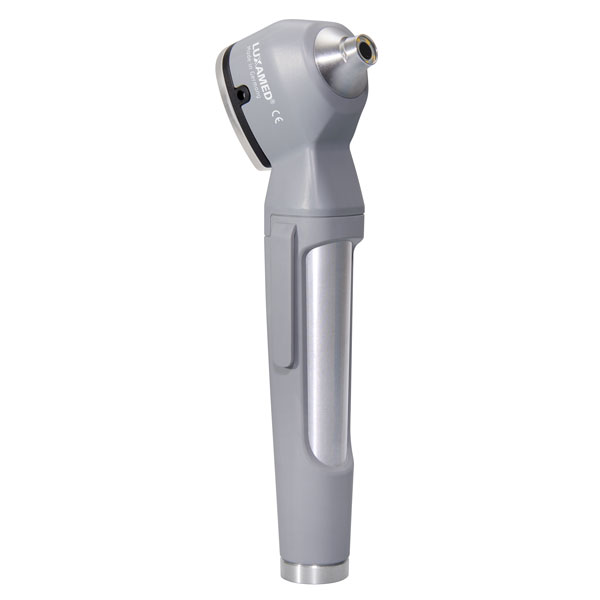

LuxaScope Auris LED 2.5 V
Innovative Otoscope with Dual-Color CCT LED Illumination
The LuxaScope Auris CCT LED 2.5 V otoscope represents the latest generation of compact diagnostic instruments, featuring innovative CCT (Correlated Color Temperature) technology for optimal illumination in every examination. Equipped with a dual LED-Ring system, it allows the practitioner to switch between warm and cold white light at the touch of a button — ensuring precision, contrast, and natural color rendering during otoscopic evaluations.
CCT Technology
Warm white light: Comparable to conventional lamps (bulbs or gas-discharge types),
offering familiar, natural illumination for standard otoscopic examinations with a spectral composition similar to traditional lighting.
Cold white light: Provides higher contrast and more detailed imaging, especially within the red spectrum.
The spectral distribution allows a clearer view of blood vessels and highly perfused tissue areas through enhanced absorption.
Characteristics
- Innovative otoscope in pocket size
- Advanced LED-Ring with 2 × 4 concentric LEDs — switchable with one button
- No fibre optics required — unrestricted field of vision
- Maintenance-free design — no lamp replacement necessary
- Automatic shutoff after 3 minutes
- LED lifetime: approx. 100,000 hours (constant current operation)
- Color temperature: Ring 1 ≈ 3,000 K (warm white), Ring 2 ≈ 6,000 K (cold white)
- Optimized otoscope head design
- Pivoting 3× magnifying glass with locking function
- Insufflation port for pneumatic testing
- Two-component handle (aluminium / glass-fibre reinforced)
- Compatible with LuxaScope Dermatoscope CCT LED head
- Electronic ON/OFF push-button switch
- Power supply: 2 × AAA alkaline batteries (included)
- Includes 20 disposable ear funnels (10 × 2.5 mm and 10 × 4.0 mm, grey)
Item Numbers
| Code | Description |
|---|---|
| A1.616.114 | LuxaScope Auris CCT LED 2.5 V, black |
| A1.616.214 | LuxaScope Auris CCT LED 2.5 V, blue |
| A1.616.314 | LuxaScope Auris CCT LED 2.5 V, grey |
| A1.616.914 | LuxaScope Auris CCT LED 2.5 V, white |

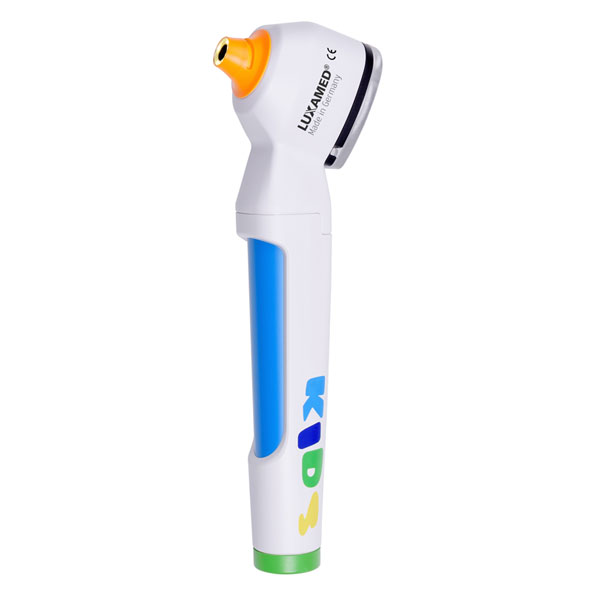

LuxaScope Auris LED 2.5 V KIDS
Compact LED Otoscope Designed for Pediatric Examinations
The LuxaScope Auris LED 2.5 V KIDS otoscope combines advanced illumination technology with a compact, ergonomic design tailored for pediatric use. Featuring a bright LED-Ring with 6 concentric LEDs and a pivoting 3× magnifying lens, it provides a clear, unobstructed view of the ear canal and eardrum — ensuring precision and comfort during every examination.
Characteristics
- Innovative otoscope in pocket size
- Illumination: LED-Ring with 6 concentric LEDs — no fibre optics, unrestricted field of vision
- Maintenance-free — no lamp replacement required
- Dimmable light intensity
- Automatic shutoff after 3 minutes
- LED lifetime: approx. 100,000 hours (constant current operation)
- Illumination intensity: approx. 10,000 Lux
- Color temperature: approx. 4,250 K
- Color Rendering Index (CRI): > 90
- Optimized otoscope head design
- Pivoting 3× magnifying glass with locking function
- Insufflation port for pneumatic testing
- Two-component handle (aluminium / glass-fibre reinforced)
- Compatible with LuxaScope LED Dermatoscope and Ophthalmoscope heads
- Electronic ON/OFF push-button switch
- Power supply: 2 × AAA alkaline batteries (included)
- Includes 20 disposable ear funnels (10 × 2.5 mm and 10 × 4.0 mm, grey)
Item Number
| Code | Description |
|---|---|
| A1.516.914 | LuxaScope Auris LED 2.5 V KIDS Otoscope |
LuxaScope Auris LED 2.5 V
The LuxaScope Auris LED 2.5 V is an innovative pocket-sized otoscope designed for professional use in medical diagnostics. Featuring a concentric LED-Ring with 6 LEDs, it provides bright, shadow-free illumination without fibre optics — ensuring a clear and unobstructed field of vision. Its precision-engineered head, ergonomic handle, and long-lasting LED system make it a reliable tool for everyday otoscopic examinations.
Characteristics
- Innovative otoscope in compact pocket size
- Illumination: LED-Ring with 6 concentric LEDs — no fibre optics, unrestricted field of vision
- Maintenance-free — no lamp replacement required
- Dimmable light intensity
- Automatic shutoff after 3 minutes
- LED lifetime: approx. 100,000 hours (constant current operation)
- Illumination intensity: approx. 10,000 Lux
- Color temperature: approx. 4,250 K
- Color Rendering Index (CRI): > 90
- Optimized otoscope head design
- Pivoting 3× magnifying glass with locking function
- Insufflation port for pneumatic testing
- Two-component handle (aluminium / glass-fibre reinforced)
- Compatible with LuxaScope LED Dermatoscope and Ophthalmoscope heads
- Electronic ON/OFF push-button switch
- Power supply: 2 × AAA alkaline batteries (included)
- Includes 20 disposable ear funnels (10 × 2.5 mm and 10 × 4.0 mm, grey)
Item Numbers
| Code | Description |
|---|---|
| A1.416.114 | LuxaScope Auris LED 2.5 V, black |
| A1.416.214 | LuxaScope Auris LED 2.5 V, blue |
| A1.416.314 | LuxaScope Auris LED 2.5 V, grey |
| A1.416.914 | LuxaScope Auris LED 2.5 V, white |
LuxaScope Auris LED 3.7 V
LuxaScope Auris LED 3.7 V
Professional LED Otoscope with Rechargeable Power
The LuxaScope Auris LED 3.7 V is an advanced, pocket-sized otoscope engineered for professional diagnostic use. Featuring a concentric LED-Ring with 6 LEDs, it provides bright, uniform illumination without the need for fibre optics, ensuring an unrestricted field of vision and clear visibility of the ear canal and eardrum. Its integrated rechargeable lithium-ion battery makes it ideal for continuous clinical or mobile use.
Characteristics
- Innovative otoscope in compact pocket size
- Illumination: LED-Ring with 6 concentric LEDs — no fibre optics, unrestricted field of vision
- Maintenance-free — no lamp replacement required
- Dimmable light intensity
- Automatic shutoff after 3 minutes
- LED lifetime: approx. 100,000 hours (constant current operation)
- Illumination intensity: approx. 10,000 Lux
- Color temperature: approx. 4,250 K
- Color Rendering Index (CRI): > 90
- Optimized otoscope head design
- Pivoting 3× magnifying glass with locking function
- Insufflation port for pneumatic testing
- Two-component handle (aluminium / glass-fibre reinforced)
- Compatible with LuxaScope LED Dermatoscope and Ophthalmoscope heads
- Electronic ON/OFF push-button switch
- Power supply: 1 × 3.7 V lithium-ion rechargeable battery (included)
- Includes 20 disposable ear funnels (10 × 2.5 mm and 10 × 4.0 mm, grey)
Item Numbers
| Code | Description |
|---|---|
| A1.426.114 | LuxaScope Auris LED 3.7 V, black |
| A1.426.214 | LuxaScope Auris LED 3.7 V, blue |
| A1.426.314 | LuxaScope Auris LED 3.7 V, grey |
| A1.426.914 | LuxaScope Auris LED 3.7 V, white |
LuxaScope Auris LED 2.5 V VET
Veterinary Otoscope with LED-Ring Illumination
The LuxaScope Auris LED 2.5 V VET is a compact, high-precision veterinary otoscope designed for thorough examination of the ear canal and eardrum in animal patients. It is an indispensable diagnostic instrument for general veterinary use, providing a clear, magnified view for detecting a variety of ear-related conditions. The otoscope features a 1.7× magnifying lens that offers excellent visibility deep inside the ear, while the durable, reusable aluminium funnels are easily attached via a threaded connection. The anodised funnels resist wear and are available in three different sizes to suit all animal types.
Characteristics
- Innovative veterinary otoscope in pocket size
- Illumination: LED-Ring with 6 concentric LEDs — no fibre optics, unrestricted field of view
- Maintenance-free — no lamp replacement required
- Dimmable light intensity
- Automatic shutoff after 3 minutes
- LED lifetime: approx. 100,000 hours (constant current operation)
- Light intensity: approx. 10,000 Lux
- Colour temperature: approx. 4,250 K
- Optimized otoscope head design
- Pivoting 1.7× magnifying glass with locking function
- Insufflation port for pneumatic testing
- Reusable aluminium ear funnels (3 sizes: 57×4 mm, 65×6 mm, 90×7 mm)
- Two-component handle (aluminium / glass-fibre reinforced)
- Electronic ON/OFF push-button switch
- Power supply: 2 × AAA alkaline batteries (included)
Item Numbers
| Code | Description |
|---|---|
| V1.416.114 | LuxaScope Auris VET 2.5 V, black |
| V5.204.012 | Veterinary Ear Funnel, metal, closed ∅ 4 mm |
| V5.206.012 | Veterinary Ear Funnel, metal, closed ∅ 6 mm |
| V5.207.012 | Veterinary Ear Funnel, metal, closed ∅ 7 mm |
| V9.411.112 | LuxaScope Auris LED 2.5 V, black |
Accessories and Spare Parts – Otoscopes
Accessories and Spare Parts – Otoscopes
Essential Accessories for LuxaScope Auris LED Otoscopes

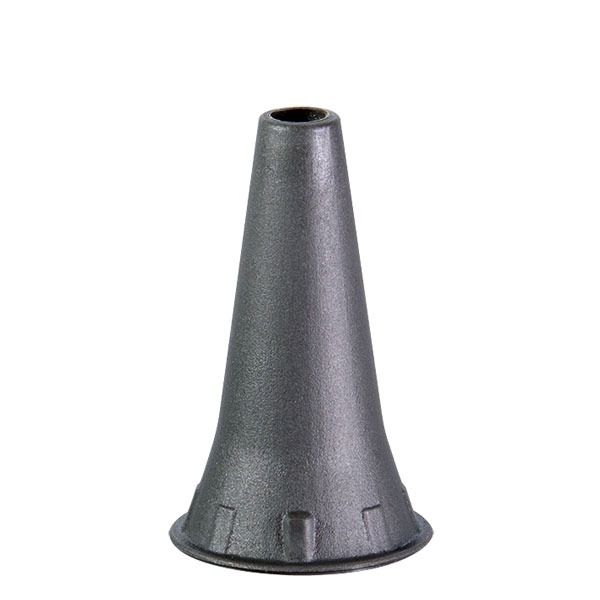

Disposable Ear Funnels
Disposable Ear Funnels are designed for hygienic, single-use applications and compatible with all current LuxaScope Auris models. Manufactured from recycled single-origin polystyrene, they are odourless, skin-friendly, and biocompatible. Available in multiple sizes and quantities for convenient clinical use.
Characteristics
- Available in PU 250 pcs. and 1000 pcs. – delivered in a practical, attractive box
- Single-use for hygienic and safe application
- Compatible with all current otoscope models
- Secure fit on the otoscope head
- Made of single-origin recycled polystyrene – odourless, skin-friendly, and biocompatible
- Colour: anthracite
Quantity / Item Numbers
| Code | Size / Description |
|---|---|
| A5.101.144 | 2.5 mm × 100 pcs. |
| A5.102.144 | 4.0 mm × 100 pcs. |
| A5.101.124 | 2.5 mm × 250 pcs. (in box) |
| A5.102.124 | 4.0 mm × 250 pcs. (in box) |
| A5.101.184 | 2.5 mm × 1000 pcs. (in box) |
| A5.102.184 | 4.0 mm × 1000 pcs. (in box) |
| A5.101.194 | 2.5 mm, 10×30 plug-packed |
| A5.102.194 | 4.0 mm, 10×30 plug-packed |
Ear Funnel Dispenser
Designed for practical and hygienic storage, the Ear Funnel Dispenser can hold up to two different funnel sizes. Suitable for wall mounting, each tube can store up to 30 ear funnels. Easy to refill and close with a protective cover.
- Wall-mountable dispenser
- Holds two different funnel sizes (Ø 2.5 mm and Ø 4.0 mm)
- Each tube stores up to 30 ear funnels
- Easy to refill and clean
- Closable with cover for hygiene
- Compatible with all LuxaScope Auris models
- Ear funnels not included
| Code | Description |
|---|---|
| A5.401.112 | Ear Funnel Dispenser (for wall mounting) |
Insufflation Bulb
The Insufflation Bulb is used for pneumatic testing and is compatible with all LuxaScope Auris LED otoscopes. It ensures precise air pressure delivery during otoscopic examinations.
| Code | Description |
|---|---|
| A5.201.112 | Insufflation Bulb (for LuxaScope Auris LED Otoscopes) |
Spare Parts – LuxaScope Auris LED
A full range of original spare parts is available for all LuxaScope Auris LED otoscope models, including LED heads, handles, rechargeable versions, and rechargers. Compatible with 2.5 V, 3.7 V, and CCT LED models.
| Code | Description |
|---|---|
| A9.411.112 | LED Otoscope Head, black |
| A9.411.212 | LED Otoscope Head, blue |
| A9.411.312 | LED Otoscope Head, grey |
| A9.016.112 | 2.5 V Otoscope Handle, black |
| A9.016.212 | 2.5 V Otoscope Handle, blue |
| A9.016.312 | 2.5 V Otoscope Handle, grey |
| A9.026.112 | 3.7 V Otoscope Handle, black (incl. Li-ion rechargeable battery) |
| A9.026.212 | 3.7 V Otoscope Handle, blue (incl. Li-ion rechargeable battery) |
| A9.026.312 | 3.7 V Otoscope Handle, grey (incl. Li-ion rechargeable battery) |
| A9.411.912 | LuxaScope Auris LED Otoscope Head (for 2.5 V & 3.7 V handles), white |
| E5.700.014 | Recharger with USB plug and adapter (EU/UK/USA) |
| A9.511.112 | LuxaScope Auris CCT LED Otoscope Head, black |
| A9.511.212 | LuxaScope Auris CCT LED Otoscope Head, blue |
| A9.511.312 | LuxaScope Auris CCT LED Otoscope Head, grey |
| A9.511.912 | LuxaScope Auris CCT LED Otoscope Head, white |
