Subdermal Needle Electrode

Neurodart - Subdermal Electrode

The Neurodart Subdermal Electrode is engineered to guarantee excellent signal stability and non-traumatic insertion. It ensures accurate recording and efficient patient stimulation, making it suitable for both clinical and intraoperative neurophysiological monitoring.

Provides stable, high-quality EEG and EMG recordings
Non-traumatic design ensures patient comfort
Available in multiple cable lengths for various monitoring setups
Touch Proof Ø 1.5 mm DIN 42802 connector
Offered in two color reference sets (S / B)

Models with 0.40 mm Needle Diameter

Code	Needle Length	Needle Diameter	Cable Length	Pack
MN4013D10S	13 mm	0.40 mm	100 cm	24 pcs
MN4013D10B	13 mm	0.40 mm	100 cm	24 pcs
MN4013D15S	13 mm	0.40 mm	150 cm	24 pcs
MN4013D15B	13 mm	0.40 mm	150 cm	24 pcs
MN4013D25S	13 mm	0.40 mm	250 cm	24 pcs
MN4013D25B	13 mm	0.40 mm	250 cm	24 pcs

Connector: Touch Proof Ø 1.5 mm DIN 42802

Available Color Sets:

Additional Models

Code	Needle Length	Needle Diameter	Cable Length	Connectors	Pack
MN3512P150	12 mm	0.35 mm	8 cm	1 mm Pin	250 pcs
MN3518P150	18 mm	0.35 mm	8 cm	1 mm Pin	250 pcs
MN3512P100	12 mm	0.35 mm	8 cm	1 mm Pin	100 pcs
MN3512F110	12 mm	0.35 mm	ND	1 mm Pin	250 pcs
MN3010F007	10 mm	0.35 mm	ND	0.7 mm Touch Proof Pin	40 pcs

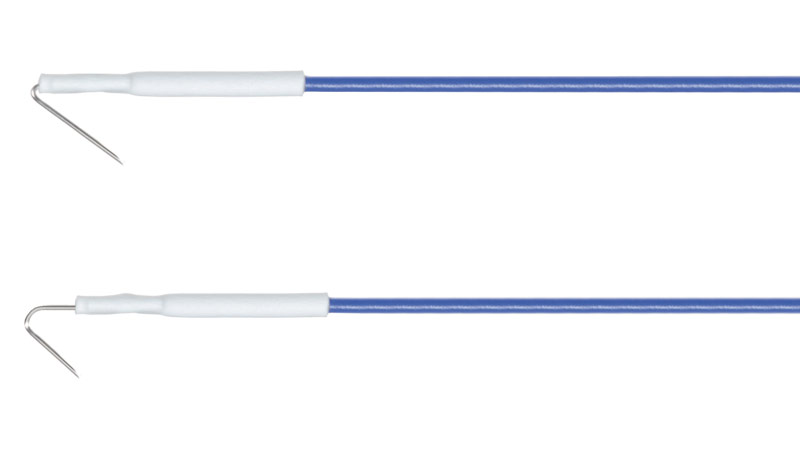

Hook Needle Electrodes

Hook Needle Electrodes ensure excellent signal stability and optimal patient stimulation. As highlighted in the American Society of Neurophysiological Monitoring Guidelines, the curved needle design provides greater signal stability and reduces the risk of needle breakage during neurodiagnostic and intraoperative procedures.

Curved design for improved stability and safety
Provides excellent EEG and EMG signal acquisition
Ensures non-traumatic insertion and reliable long-term performance
Available in multiple cable lengths and connector options

Standard Hook Needle Models (0.40 mm)

Code	Needle Length	Needle Diameter	Cable Length	Pack
MN4013HD10S	13 mm	0.40 mm	100 cm	24 pcs
MN4013HD15S	13 mm	0.40 mm	150 cm	24 pcs
MN4013HD25S	13 mm	0.40 mm	250 cm	24 pcs

Connector: Touch Proof Ø 1.5 mm DIN 42802

Additional Model:

Code	Needle Length	Needle Diameter	Cable Length	Pack	Connector
MN3512H150	13 mm	0.35 mm	8 cm	250 pcs	1 mm Pin

Curved Hook Needle Models (21 mm)

Code	Needle Length	Needle Diameter	Cable Length	Pack
MN4013CD10S	21 mm	0.40 mm	100 cm	24 pcs
MN4013CD15S	21 mm	0.40 mm	150 cm	24 pcs
MN4013CD25S	21 mm	0.40 mm	250 cm	24 pcs

Connector: Touch Proof Ø 1.5 mm DIN 42802

Contact Echovision for access to our full range of medical products.
