EMG / Adhesive Electrodes
EMG / Adhesive Electrodes
Hydrogel adhesive electrodes designed for surface EMG applications, guaranteeing excellent signal quality and patient comfort.
The hydrogel provides strong yet gentle adhesion, allowing repositioning even after extended use.
Made of biocompatible materials tested on the most sensitive skin types, suitable for long-term recordings.
Available in different shapes and sizes to ensure ideal recordings even on smaller muscles.
The hydrogel provides strong yet gentle adhesion, allowing repositioning even after extended use.
Made of biocompatible materials tested on the most sensitive skin types, suitable for long-term recordings.
Available in different shapes and sizes to ensure ideal recordings even on smaller muscles.

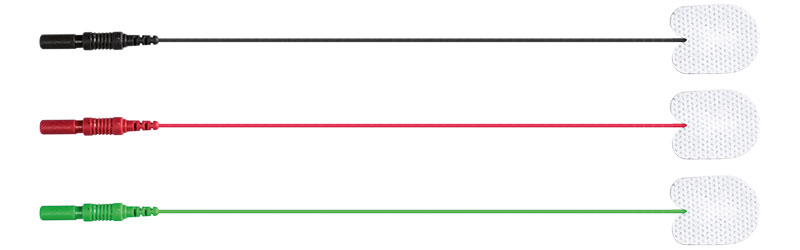

Adhesive Electrodes – 15×20 mm
| Code | Size | Connectors | Cable Length | Box |
|---|---|---|---|---|
| DENIS01526 | 15×20 mm | Ø 1.5 mm | 15 cm | 20 pack / 120 pcs |
| DENIS10026 | 15×20 mm | Ø 1.5 mm | 100 cm | 20 pack / 120 pcs |
| DENIS15026 | 15×20 mm | Ø 1.5 mm | 150 cm | 20 pack / 120 pcs |
| DENIS25026 | 15×20 mm | Ø 1.5 mm | 250 cm | 20 pack / 120 pcs |
| DENIS00807 | 15×20 mm | 0.7 mm Touch Proof Pin | 8 cm | 20 pack / 240 pcs |
| DENIS00830 | 15×20 mm | 1 mm Pin | 8 cm | 20 pack / 240 pcs |
| DENIS01520 | 15×20 mm | Snap | — | 20 pack / 480 pcs |
| DENIS01500 | 15×20 mm | Bipolar | 15 cm | 20 pack / 120 pcs |
Adhesive Electrodes – 20×25 mm
| Code | Size | Connectors | Cable Length | Box |
|---|---|---|---|---|
| DENIL01526 | 20×25 mm | Ø 1.5 mm | 15 cm | 20 pack / 120 pcs |
| DENIL10026 | 20×25 mm | Ø 1.5 mm | 100 cm | 20 pack / 120 pcs |
| DENIL15026 | 20×25 mm | Ø 1.5 mm | 150 cm | 20 pack / 120 pcs |
| DENIL25026 | 20×25 mm | Ø 1.5 mm | 250 cm | 20 pack / 120 pcs |
| DENIL00807 | 20×25 mm | 0.7 mm Touch Proof Pin | 8 cm | 20 pack / 240 pcs |
| DENIL00830 | 20×25 mm | 1 mm Pin | 8 cm | 20 pack / 240 pcs |
| DENIS02025 | 20×25 mm | Snap | — | 20 pack / 400 pcs |
| DENIL01500 | 20×25 mm | Bipolar | 15 cm | 20 pack / 120 pcs |
Connector: Touch Proof Ø 1.5 mm DIN 42802
Snap Adhesive Electrodes
The Snap Adhesive Electrodes are designed for quick and secure connection using standard snap-type leads.
They offer excellent adhesion and high-quality signal acquisition while being gentle on the skin.
Suitable for surface EMG and neurodiagnostic recordings, they are available in different shapes and sizes to match various clinical needs.
They offer excellent adhesion and high-quality signal acquisition while being gentle on the skin.
Suitable for surface EMG and neurodiagnostic recordings, they are available in different shapes and sizes to match various clinical needs.
| Code | Size | Connectors | Box |
|---|---|---|---|
| CDES000024 | Ø 24 mm | Snap | 20 pack / 480 pcs |
| CDES003545 | 35×45 mm | Snap | 20 pack / 80 pcs |

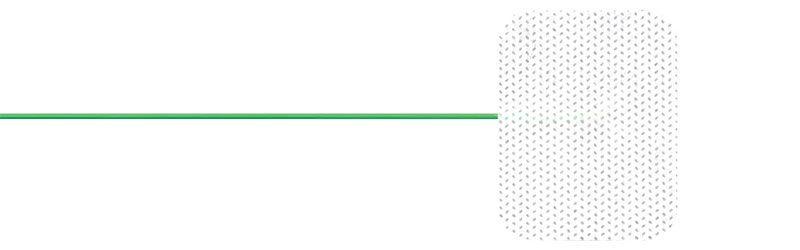

Ground Adhesive Electrodes
The Ground Adhesive Electrodes are designed for reliable and stable reference grounding during EMG and neurodiagnostic procedures.
Made with biocompatible hydrogel for excellent skin adhesion and low impedance contact.
Flexible construction and integrated cable ensure patient comfort and consistent signal quality.
Made with biocompatible hydrogel for excellent skin adhesion and low impedance contact.
Flexible construction and integrated cable ensure patient comfort and consistent signal quality.
| Code | Size | Connectors | Cable Length | Box |
|---|---|---|---|---|
| DENIG15026 | 35×45 mm | Ø 1.5 mm | 150 cm | 20 pack / 80 pcs |
Connector: Touch Proof Ø 1.5 mm DIN 42802

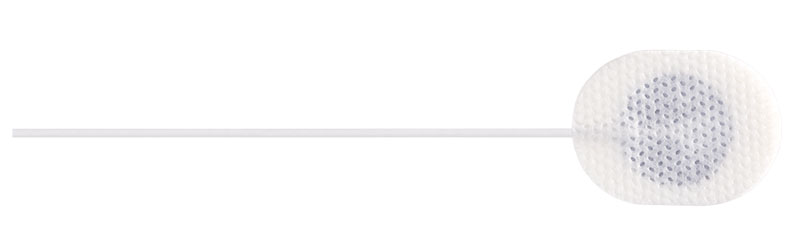

NCS Adhesive Electrodes
High-quality surface electrodes designed for Nerve Conduction Studies (NCS) and EMG applications.
Provide excellent recording performance with low impedance and high resistance to repeated use.
The hydrogel ensures secure adhesion and optimal patient comfort throughout the test.
Provide excellent recording performance with low impedance and high resistance to repeated use.
The hydrogel ensures secure adhesion and optimal patient comfort throughout the test.
| Code | Size | Connectors | Cable Length | Box |
|---|---|---|---|---|
| DENIB00807 | 30×22 mm | 0.7 mm Touch Proof Pin | 8 cm | 20 pack / 120 pcs |
| DENIB10026 | 30×22 mm | Ø 1.5 mm | 100 cm | 20 pack / 120 pcs |
| DENIB15026 | 30×22 mm | Ø 1.5 mm | 150 cm | 20 pack / 120 pcs |
| DENIB25026 | 30×22 mm | Ø 1.5 mm | 250 cm | 20 pack / 120 pcs |
Connector: Touch Proof Ø 1.5 mm DIN 42802
Adhesive Electrodes for Sleep or Long Term Monitoring
High-performance adhesive electrodes designed for sleep studies (PSG) and long-term monitoring applications.
Made of durable materials suitable for extended recordings while maintaining stable adhesion.
The small size is ideal for pediatric and facial use, ensuring comfort and accuracy.
Excellent signal quality is achieved thanks to the gel application that guarantees low impedance contact.
Made of durable materials suitable for extended recordings while maintaining stable adhesion.
The small size is ideal for pediatric and facial use, ensuring comfort and accuracy.
Excellent signal quality is achieved thanks to the gel application that guarantees low impedance contact.
| Code | Size | Connectors | Cable Length | Box |
|---|---|---|---|---|
| DENIF10026 | 30×22 mm | Ø 1.5 mm | 100 cm | 20 pack / 120 pcs |
| DENIF15026 | 30×22 mm | Ø 1.5 mm | 150 cm | 20 pack / 120 pcs |
| DENIF25026 | 30×22 mm | Ø 1.5 mm | 250 cm | 20 pack / 120 pcs |
Connector: Touch Proof Ø 1.5 mm DIN 42802

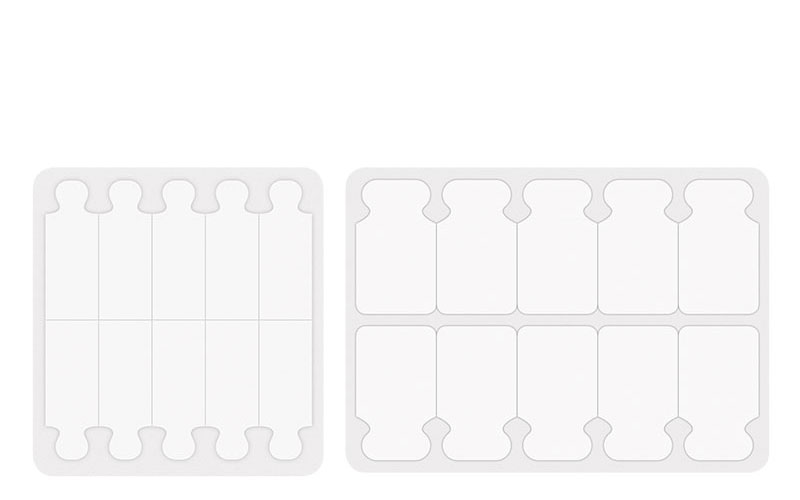

Tab Adhesive Electrodes
Tab Adhesive Electrodes are designed for routine and long-term surface EMG or PSG recordings.
Made from biocompatible materials with strong yet gentle adhesive for excellent skin contact and stable signal acquisition.
The tab-style connector ensures easy lead wire attachment and quick application even in pediatric or facial areas.
Made from biocompatible materials with strong yet gentle adhesive for excellent skin contact and stable signal acquisition.
The tab-style connector ensures easy lead wire attachment and quick application even in pediatric or facial areas.
| Code | Size | Connectors | Box |
|---|---|---|---|
| TABSMP000025 | 14×34 mm | Tab | 25 pack / 2500 pcs |
| TABSM0000025 | 20×34 mm | Tab | 25 pack / 2500 pcs |

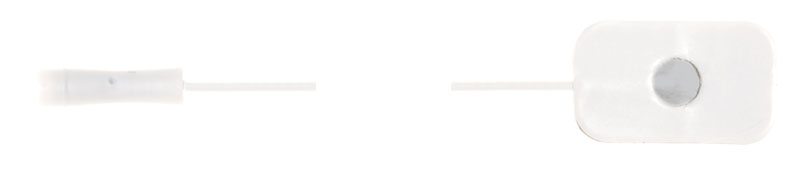

Adhesive Electrodes with Reduced Recording Area
Adhesive electrodes with a reduced recording area designed for precise signal detection on small muscles and targeted regions.
Ideal for facial EMG, pediatric use, and localized recordings where high resolution and minimal cross-talk are essential.
Available in both Touch Proof Pin and Snap connector versions.
Ideal for facial EMG, pediatric use, and localized recordings where high resolution and minimal cross-talk are essential.
Available in both Touch Proof Pin and Snap connector versions.
| Code | Ø Recording Area | Connectors | Cable Length | Box |
|---|---|---|---|---|
| DENID00807 | 6 mm | 0.7 mm Touch Proof Pin | 8 cm | 50 pcs |
| DAEDS1604 | 4 mm | Snap | — | 25 pcs |
Contact Echovision for access to our full range of medical products.
