The LuxaScope LED Dermatoscope
Advanced LED Dermatoscope with Precision Illumination
The LuxaScope LED Dermatoscope combines elegant design, precision engineering, and advanced LED technology. Refined aluminium accents and top-grade materials make it both a visual and functional highlight in any medical setting. Crafted with meticulous attention to detail, this dermatoscope unites traditional craftsmanship with state-of-the-art illumination technology for precise, distortion-free dermatological examinations.

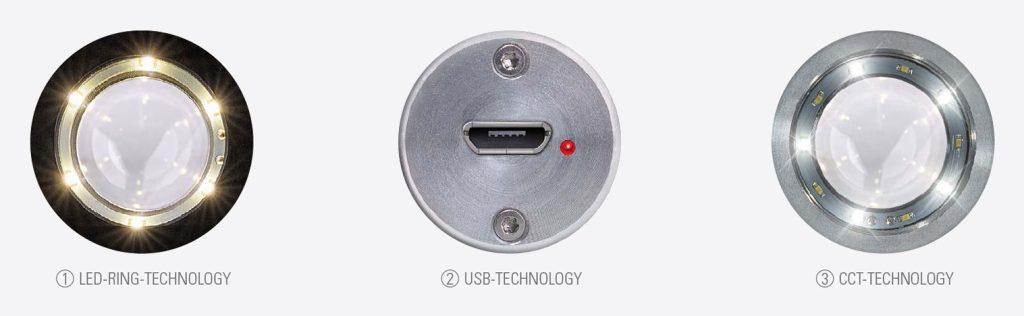

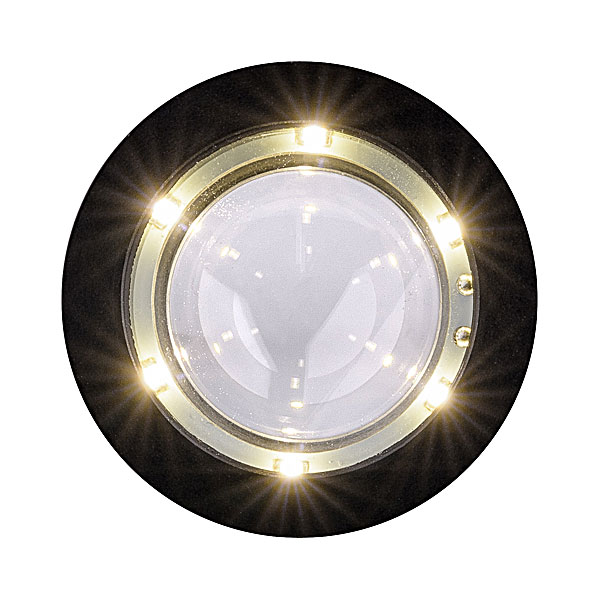

1. LED-Ring Technology
The innovative LED-Ring illumination provides uniform, shadow-free lighting and a highly detailed, distortion-free image.
The LEDs are driven by a constant current, ensuring consistent brightness and a significantly longer service life —
with no bulb replacements required.

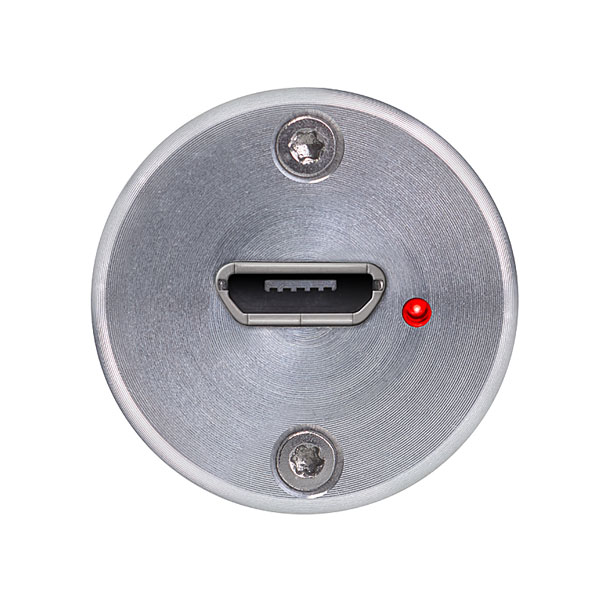

2. USB Technology
Featuring integrated USB charging technology, the LuxaScope LED Dermatoscope can be conveniently charged directly via power supply or computer
— eliminating the need for a separate charging station and allowing easy portability and flexibility.
3. CCT Technology

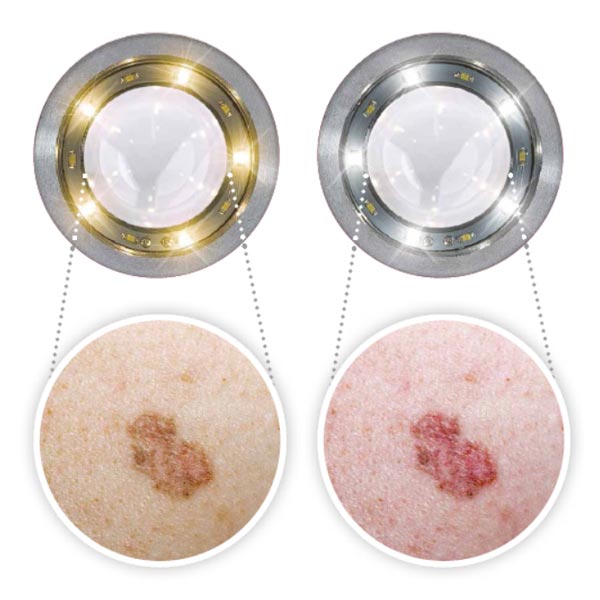

The LuxaScope CCT LED version offers dual-color illumination for maximum diagnostic accuracy.
Its unique light system with 2 × 5 LEDs enables switching between:
- Warm white light — comparable to conventional bulbs or gas-discharge lamps, providing natural illumination for standard examinations.
- Cold white light — enhances contrast and detail, particularly in the red spectrum, allowing improved visualization of vascular structures and perfused areas.
The spectral composition of the CCT lighting enables a more detailed view of the vessels and skin microstructures due to enhanced absorption characteristics.
Focused on the essential. Made by LUXAMED.
LuxaScope Dermatoscope LED 2.5 V Kids
The LuxaScope Dermatoscope LED 2.5 V Kids is a pocket-sized, high-precision diagnostic instrument designed specifically for pediatric dermatological use. It provides bright, homogeneous LED illumination with a highly detailed, distortion-free image. Its ergonomic construction, easy-clean contact plate, and compact form make it the perfect choice for accurate and comfortable skin examinations in children.
Characteristics
- Innovative dermatoscope in pocket size
- LED-Ring with 6 concentric LEDs for homogeneous light and high-detail imaging
- Maintenance-free — no bulb replacement required
- Removable contact plate for easy cleaning
- Stepless zoom with 10× magnification for a distortion-free image
- Optimized head design for comfort and precision
- Dimmable illumination intensity
- Automatic shutoff after 3 minutes
- LED lifetime: approx. 100,000 hours (constant current operation)
- Illumination intensity: approx. 10,000 Lux
- Color temperature: approx. 4,200 K
- Two-component handle (aluminium / glass-fibre reinforced)
- Compatible with LuxaScope LED Otoscope and Ophthalmoscope heads
- Electronic ON/OFF push-button switch
- Power supply: 2 × AAA alkaline batteries (included)
Item Numbers
| Code | Description |
|---|---|
| C1.816.914 | LuxaScope Dermatoscope LED 2.5 V Kids, contact plate WITHOUT scale |

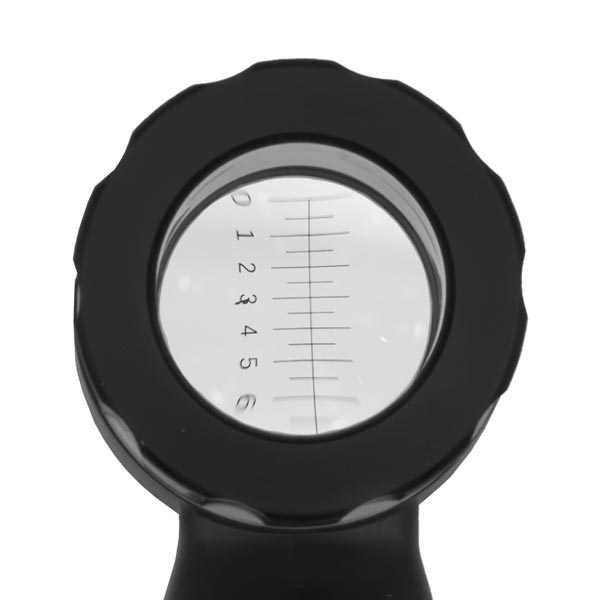

| C1.416.914 | LuxaScope Dermatoscope LED 2.5 V Kids, contact plate WITH scale |
Penlight with standard bulb for eye- and throat diagnostic

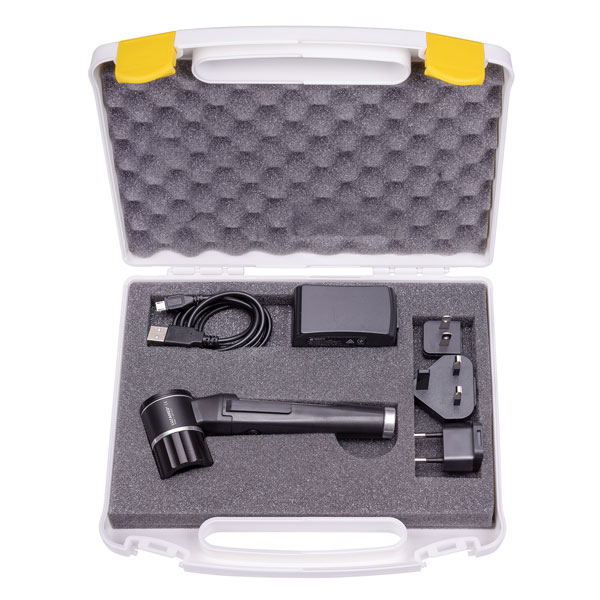

The LuxaScope Dermatoscope LED 3.7 V is a state-of-the-art pocket-sized dermatoscope designed for detailed dermatological examinations. It features advanced LED-Ring illumination for a bright, homogeneous field of light and distortion-free imaging. With a rechargeable lithium-ion battery and ergonomic design, it offers both performance and convenience for professional use in clinics and hospitals.
Characteristics
- Innovative dermatoscope in compact pocket size
- LED-Ring with 6 concentric LEDs for homogeneous illumination and high-detail imaging
- Maintenance-free — no lamp replacement required
- Removable contact plate for easy cleaning
- Stepless zoom with 10× magnification for distortion-free imaging
- Optimized head design for precision and ergonomics
- Dimmable light intensity
- Automatic shutoff after 3 minutes
- LED lifetime: approx. 100,000 hours (constant current operation)
- Illumination intensity: approx. 10,000 Lux
- Color temperature: approx. 4,250 K
- Two-component handle (aluminium / glass-fibre reinforced)
- Compatible with LuxaScope LED Otoscope and Ophthalmoscope heads
- Electronic ON/OFF push-button switch
- Power supply: 1 × 3.7 V lithium-ion rechargeable battery (included)
- Includes USB recharger with EU / UK / US plug adapters
Item Numbers
| Code | Description |
|---|---|
| C1.426.114 | LuxaScope Dermatoscope LED 3.7 V, contact plate WITHOUT scale, black |
| C1.426.914 | LuxaScope Dermatoscope LED 3.7 V, contact plate WITHOUT scale, white |
| C1.526.114 | LuxaScope Dermatoscope LED 3.7 V, contact plate WITH scale, black |
| C1.526.914 | LuxaScope Dermatoscope LED 3.7 V, contact plate WITH scale, white |
LuxaScope Dermatoscope CCT LED 2.5 V
The LuxaScope Dermatoscope CCT LED 2.5 V is an innovative, pocket-sized dermatoscope featuring dual-color illumination for superior diagnostic precision. Its advanced LED-Ring with 2×5 concentric LEDs allows switching between warm and cold white light at the touch of a button — providing unmatched flexibility and high-contrast visualization for dermatological examinations.
Characteristics
- Innovative dermatoscope in compact pocket size
- LED-Ring with 2×5 concentric LEDs for homogeneous, high-detail illumination
- Switchable light temperature with one button press
- Removable contact plate for easy cleaning
- Maintenance-free — no lamp replacement required
- Stepless zoom with 10× magnification for distortion-free imaging
- Optimized head design for comfort and precision
- Automatic shutoff after 3 minutes
- LED lifetime: approx. 100,000 hours (constant current operation)
- Illumination intensity: approx. 10,000 Lux
- Color temperature: Ring 1 ≈ 3,000 K (warm white), Ring 2 ≈ 6,000 K (cold white)
- Two-component handle (aluminium / glass-fibre reinforced)
- Compatible with LuxaScope Auris CCT LED 2.5 V Otoscope head
- Electronic ON/OFF push-button switch
- Power supply: 2 × AAA alkaline batteries (included)
Item Numbers
| Code | Description |
|---|---|
| C1.616.114 | LuxaScope Dermatoscope CCT LED 2.5 V, contact plate WITHOUT scale, black |
| C1.616.914 | LuxaScope Dermatoscope CCT LED 2.5 V, contact plate WITHOUT scale, white |
| C1.716.114 | LuxaScope Dermatoscope CCT LED 2.5 V, contact plate WITH scale, black |
| C1.716.914 | LuxaScope Dermatoscope CCT LED 2.5 V, contact plate WITH scale, white |

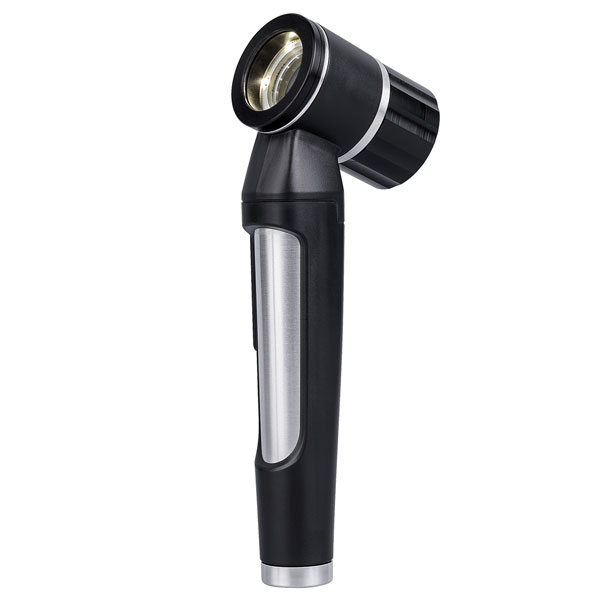

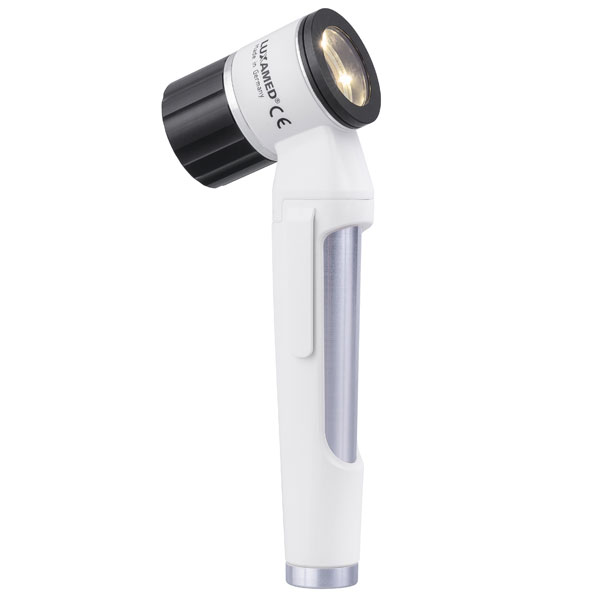

LuxaScope Dermatoscope LED 2.5 V
The LuxaScope Dermatoscope LED 2.5 V is a compact, precision diagnostic instrument designed for detailed dermatological examinations. Featuring a concentric LED-Ring with 6 LEDs, it provides bright, homogeneous illumination and distortion-free imaging with exceptional clarity. Its ergonomic two-component handle and easily removable contact plate ensure both comfort and hygiene in everyday medical practice.
Characteristics
- Innovative dermatoscope in pocket size
- LED-Ring with 6 concentric LEDs for homogeneous, high-detail illumination
- Maintenance-free — no lamp replacement required
- Removable contact plate for easy cleaning
- Stepless zoom with 10× magnification for distortion-free imaging
- Optimized head design for precision and comfort
- Dimmable light intensity
- Automatic shutoff after 3 minutes
- LED lifetime: approx. 100,000 hours (constant current operation)
- Illumination intensity: approx. 10,000 Lux
- Color temperature: approx. 4,250 K
- Two-component handle (aluminium / glass-fibre reinforced)
- Compatible with LuxaScope LED Otoscope and Ophthalmoscope heads
- Electronic ON/OFF push-button switch
- Power supply: 2 × AAA alkaline batteries (included)
Item Numbers
| Code | Description |
|---|---|
| C1.416.114 | LuxaScope Dermatoscope LED 2.5 V, contact plate WITHOUT scale, black |
| C1.416.914 | LuxaScope Dermatoscope LED 2.5 V, contact plate WITHOUT scale, white |
| C1.516.114 | LuxaScope Dermatoscope LED 2.5 V, contact plate WITH scale, black |
| C1.516.914 | LuxaScope Dermatoscope LED 2.5 V, contact plate WITH scale, white |
| C1.416.934 | LuxaScope Dermatoscope LED 2.5 V, contact plate WITHOUT scale, white / ice-blue |

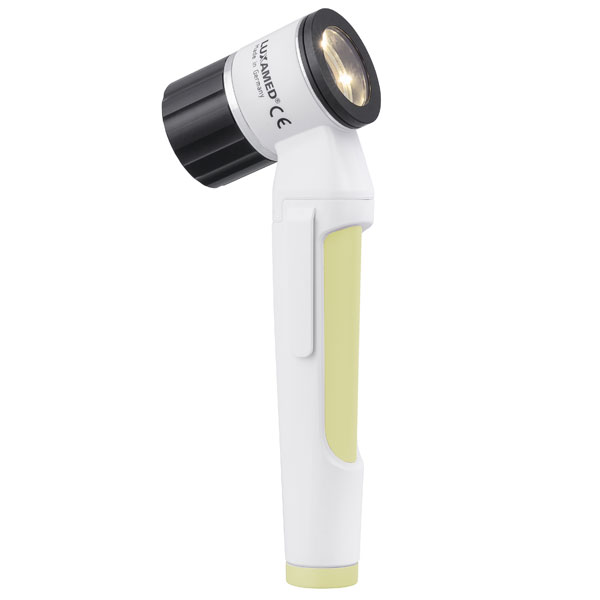

| C1.416.944 | LuxaScope Dermatoscope LED 2.5 V, contact plate WITHOUT scale, white / colza yellow |
| C1.416.954 | LuxaScope Dermatoscope LED 2.5 V, contact plate WITHOUT scale, white / jade-green |
| C1.416.964 | LuxaScope Dermatoscope LED 2.5 V, contact plate WITHOUT scale, white / delicate lilac |
| C1.416.974 | LuxaScope Dermatoscope LED 2.5 V, contact plate WITHOUT scale, white / magenta |
| C1.516.934 | LuxaScope Dermatoscope LED 2.5 V, contact plate WITH scale, white / ice-blue |
| C1.516.944 | LuxaScope Dermatoscope LED 2.5 V, contact plate WITH scale, white / colza yellow |
| C1.516.954 | LuxaScope Dermatoscope LED 2.5 V, contact plate WITH scale, white / jade-green |
| C1.516.964 | LuxaScope Dermatoscope LED 2.5 V, contact plate WITH scale, white / delicate lilac |
| C1.516.974 | LuxaScope Dermatoscope LED 2.5 V, contact plate WITH scale, white / magenta |
Accessories and Spare Parts – Dermatoscopes
Original Accessories and Replacement Parts for LuxaScope Dermatoscopes
Maintain peak performance and versatility with genuine LuxaScope Dermatoscope accessories and spare parts. All components are engineered for precision, durability, and compatibility across the LuxaScope LED and CCT LED series — ensuring long-lasting reliability for professional dermatological examinations.
Item Numbers
| Code | Description |
|---|---|
| C9.611.112 | LuxaScope Dermatoscope CCT LED head 2.5 V, black, contact plate WITHOUT scale |
| C9.611.912 | LuxaScope Dermatoscope CCT LED head 2.5 V, white, contact plate WITHOUT scale |
| C9.711.112 | LuxaScope Dermatoscope CCT LED head 2.5 V, black, contact plate WITH scale |
| C9.711.912 | LuxaScope Dermatoscope CCT LED head 2.5 V, white, contact plate WITH scale |
| C9.411.112 | LuxaScope Dermatoscope LED head 2.5 V, black, contact plate WITHOUT scale |
| C9.411.912 | LuxaScope Dermatoscope LED head 2.5 V, white, contact plate WITHOUT scale |
| C9.511.112 | LuxaScope Dermatoscope LED head 2.5 V, black, contact plate WITH scale |
| C9.511.912 | LuxaScope Dermatoscope LED head 2.5 V, white, contact plate WITH scale |
| A9.211.112 | LuxaScope CCT LED 2.5 V handle, black |
| A9.211.212 | LuxaScope CCT LED 2.5 V handle, blue |
| A9.211.312 | LuxaScope CCT LED 2.5 V handle, grey |
| A9.211.912 | LuxaScope CCT LED 2.5 V handle, white |
| A9.016.112 | LuxaScope LED 2.5 V handle, black |
| A9.016.212 | LuxaScope LED 2.5 V handle, blue |
| A9.016.312 | LuxaScope LED 2.5 V handle, grey |
| A9.016.912 | LuxaScope LED 2.5 V handle, white |
| A9.116.934 | LuxaScope LED 2.5 V handle, white / ice-blue |
| A9.116.944 | LuxaScope LED 2.5 V handle, white / colza yellow |
| A9.116.954 | LuxaScope LED 2.5 V handle, white / jade-green |
| A9.116.964 | LuxaScope LED 2.5 V handle, white / delicate lilac |
| A9.116.974 | LuxaScope LED 2.5 V handle, white / magenta |
| A9.026.112 | LuxaScope LED 3.7 V handle (rechargeable), black |
| A9.026.212 | LuxaScope LED 3.7 V handle (rechargeable), blue |
| A9.026.312 | LuxaScope LED 3.7 V handle (rechargeable), grey |
| A9.026.912 | LuxaScope LED 3.7 V handle (rechargeable), white |
| E5.700.014 | USB Recharger (EU / UK / US adapters included) |
