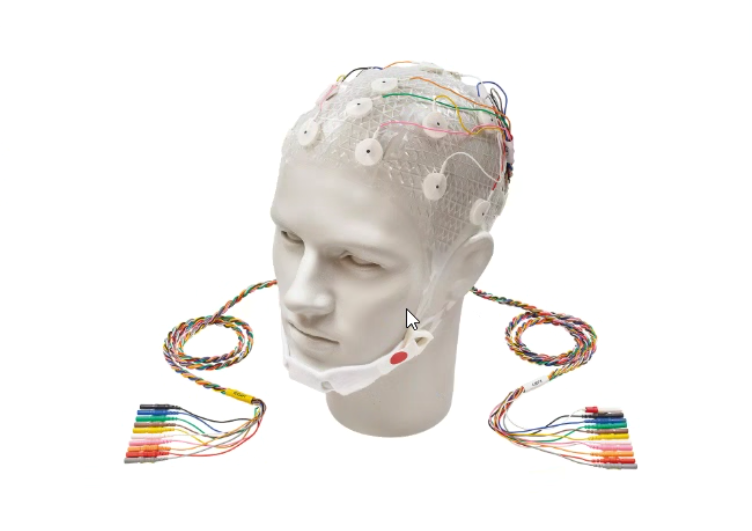

Headcaps with Prewired Electrodes

The Medcap EEG headcap is designed for professional EEG, EP, and ERG examinations, combining precision, durability, and patient comfort.
Its advanced construction ensures consistent signal quality, easy maintenance, and full compatibility with most EEG amplifiers.

Key Features

  • Made from elastic Lycra material for optimal comfort and fit

  • Color-coded sizes for quick and easy identification

  • Quick electrode replacement and cleaning system

  • International 10–20 System compliant

  • Available in configurations from 9 to 256 electrodes

  • Compatible with multiple connector types (default: Sub-D 25)

EEG / Headcaps with Prewired Electrodes
EEG / Headcaps with Prewired Electrodes

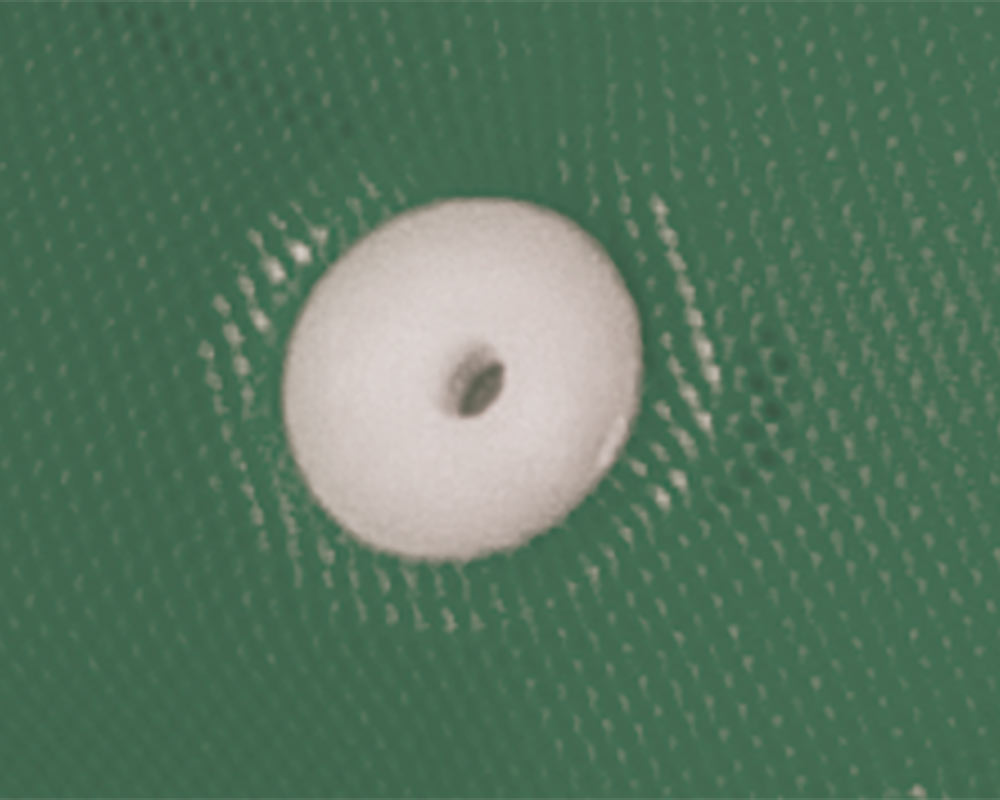

External Electrode Detail
EEG / Headcaps with Prewired Electrodes

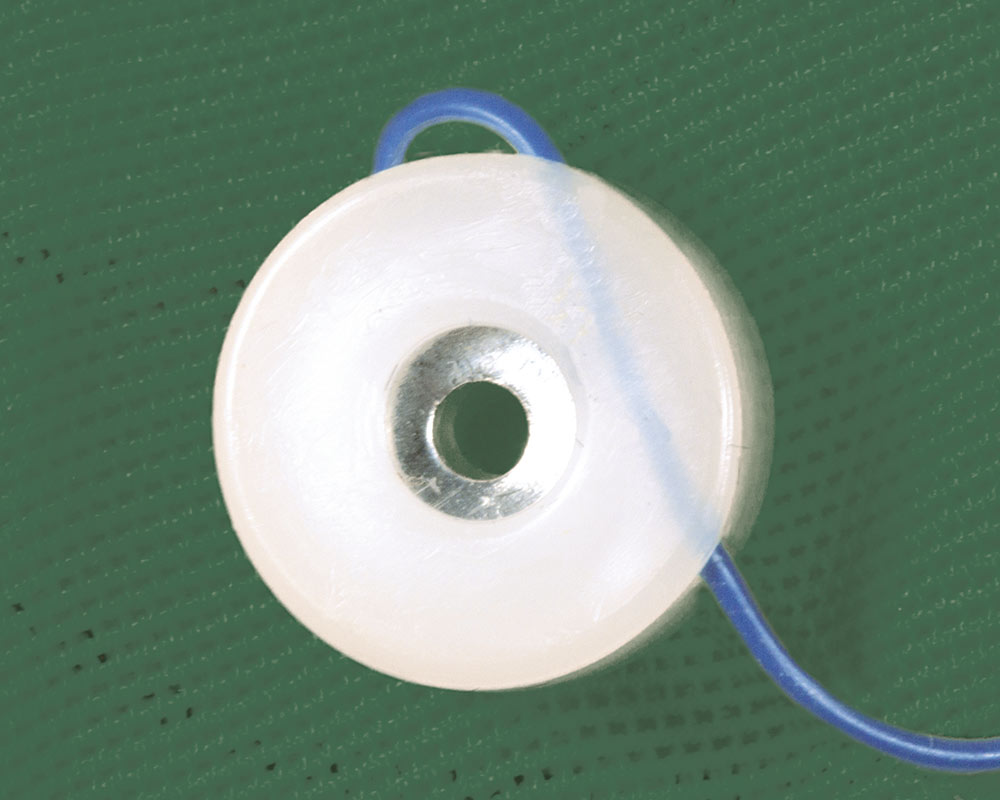

Internal Electrode Detail
EEG / Headcaps with Prewired Electrodes

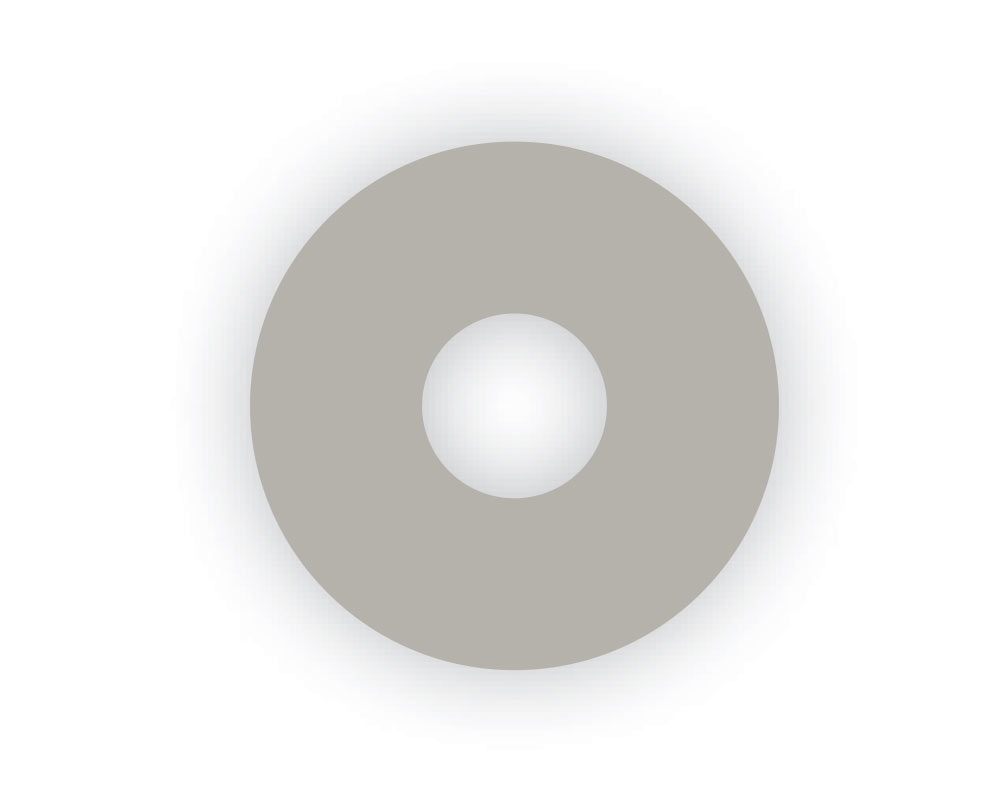

Tin

Technical Specifications

SpecificationDetail
Electrode MaterialTin (optional: Ag/AgCl, Sintered Ag/AgCl, or Gold)
Electrode HolderHDPE
Lead WirePVC
Headcap NetLycra
Recording Area21 mm²
ComplianceRoHS II, REACH, UNI EN ISO 10993
SafetyLatex-Free, Nickel-Free, Phthalate-Free

Medcap

CodeHead CircumferenceNo. of ElectrodesConnectorsPack
CAMSOLAA2058–62 cm19 + GNDEEG Connector Sub-D501 pc
CAMSOMAA2054–58 cm19 + GNDEEG Connector Sub-D501 pc
CAMSOSAA2050–54 cm19 + GNDEEG Connector Sub-D501 pc
CAMSOEAA2046–50 cm19 + GNDEEG Connector Sub-D501 pc
CAMSOLIA2042–46 cm19 + GNDEEG Connector Sub-D501 pc
CAMSOMIA1038–42 cm9 + GNDEEG Connector Sub-D501 pc
CAMSOSIA1034–38 cm9 + GNDEEG Connector Sub-D501 pc
CAMSOLAA2158–62 cm19 + GND + REFEEG Connector Sub-D501 pc
CAMSOMAA2154–58 cm19 + GND + REFEEG Connector Sub-D501 pc
CAMSOSAA2150–54 cm19 + GND + REFEEG Connector Sub-D501 pc
CAMSOEAA2146–50 cm19 + GND + REFEEG Connector Sub-D501 pc
CAMSOLIA2142–46 cm19 + GND + REFEEG Connector Sub-D501 pc
CAMSOMIA1138–42 cm9 + GND + REFEEG Connector Sub-D501 pc
CAMSOSIA1134–38 cm9 + GND + REFEEG Connector Sub-D501 pc
EchovisionMed
EEG Headcapsare available in multiple sizes and configurations, allowing for accurate and comfortable fitting across a wide range of patients and study types. All components are designed for easy integration with most neurodiagnostic systems used in clinical and research environments.

Ag/AgCl EEG Headcap – Improved Version

Improved EEG headcap featuring Ag/AgCl electrodes and a soft, low-profile electrode holder, designed to deliver clear signal recording while ensuring maximum patient comfort.

Key Features

  • High-quality Ag/AgCl electrodes for stable and reliable signal acquisition
  • Soft and low-profile electrode holder
  • Optimized for clear EEG recordings
  • Enhanced patient comfort during extended monitoring sessions
  • Available in adult and pediatric sizes

Technical Specifications – Ag/AgCl

CodeHead CircumferenceNo. ElectrodesConnectorsPack
DCAPAGLAC20Adult Large (54 – 62 cm)19 + GND-1 pc
DCAPAGLAC21Adult Large (54 – 62 cm)19 + GND + REF-1 pc
DCAPAGMAC20Adult Medium (46 – 54 cm)19 + GND-1 pc
DCAPAGMAC21Adult Medium (46 – 54 cm)19 + GND + REF-1 pc
DCAPAGMIC20Pediatric Large (40 – 46 cm)19 + GND-1 pc
DCAPAGMIC21Pediatric Large (40 – 46 cm)19 + GND + REF-1 pc
DCAPAGSIC10Pediatric Small (34 – 40 cm)9 + GND-1 pc
