EMG / Connection Cables & Adapters
Shielded Multipolar Cables
Shielded Multipolar Cables designed for use with EMG, NCS, and neurophysiological equipment.
These cables ensure maximum signal integrity thanks to superior electrical shielding and high-flexibility insulation.
Available in 2 or 3 channel configurations with multiple connector types for compatibility with any EMG system.
Custom lengths and connector combinations are available on request.
These cables ensure maximum signal integrity thanks to superior electrical shielding and high-flexibility insulation.
Available in 2 or 3 channel configurations with multiple connector types for compatibility with any EMG system.
Custom lengths and connector combinations are available on request.
| Code | Electrode Side | Headbox Side | Pack |
|---|---|---|---|
| 1003SNAP71F | 3× Snap |
5 pole DIN | 1 pc |
| 1003SNAP26F | 3× Snap |
Ø 1.5 mm | 1 pc |
| 1003MED71F | 3× 0.7 mm Socket |
5 pole DIN | 1 pc |
| 1003MED26F | 3× 0.7 mm Socket |
Ø 1.5 mm | 1 pc |
| 1003DIN71F | 3× 1.5 mm Touch Proof Pin |
5 pole DIN | 1 pc |
| 1003DIN26F | 3× 1.5 mm Touch Proof Pin |
Ø 1.5 mm | 1 pc |
| 1003P1N71F | 3× 1 mm Socket |
5 pole DIN | 1 pc |
| 1003P1N26F | 3× 1 mm Socket |
Ø 1.5 mm | 1 pc |
| 1003CROC71F | 3× Alligator Clip |
5 pole DIN | 1 pc |
| 1003CROC26F | 3× Alligator Clip |
Ø 1.5 mm | 1 pc |
| 1002SNAP71F | 2× Snap |
5 pole DIN | 1 pc |
| 1002SNAP26F | 2× Snap |
Ø 1.5 mm | 1 pc |
| 1002MED71F | 2× 0.7 mm Socket |
5 pole DIN | 1 pc |
| 1002MED26F | 2× 0.7 mm Socket |
Ø 1.5 mm | 1 pc |
| 1002DIN71F | 2× 1.5 mm Touch Proof Pin |
5 pole DIN | 1 pc |
| 1002DIN26F | 2× 1.5 mm Touch Proof Pin |
Ø 1.5 mm | 1 pc |
| 1002P1N71F | 2× 1 mm Socket |
5 pole DIN | 1 pc |
| 1002P1N26F | 2× 1 mm Socket |
Ø 1.5 mm | 1 pc |
| 1002CROC71F | 2× Alligator Clip |
5 pole DIN | 1 pc |
| 1002CROC26F | 2× Alligator Clip |
Ø 1.5 mm | 1 pc |
Cable Length: 100 cm (custom lengths available on request)

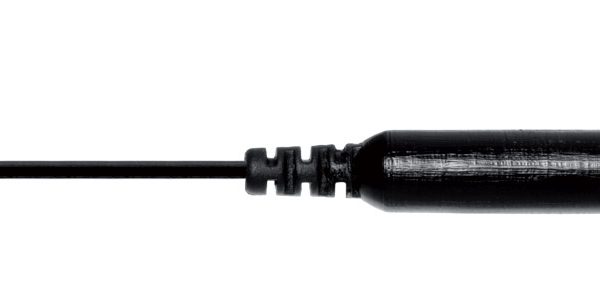

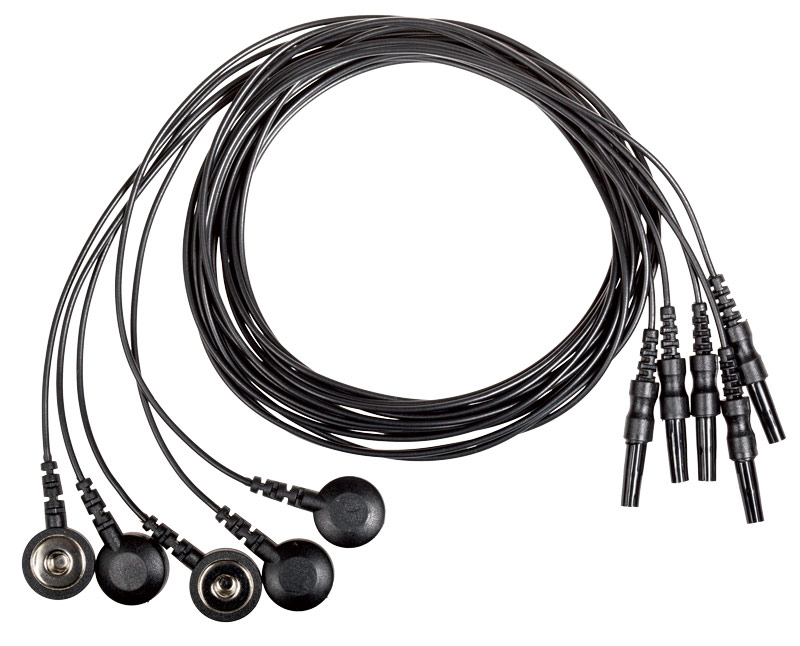

Monopolar Cables
Monopolar cables are designed for connecting EMG electrodes to a wide variety of clinical and diagnostic devices available on the market.
Manufactured with high-quality, flexible materials to ensure reliable signal transmission and long-term durability.
Each cable is supplied with a Touch Proof Ø 1.5 mm DIN 42802 connector on one side.
Manufactured with high-quality, flexible materials to ensure reliable signal transmission and long-term durability.
Each cable is supplied with a Touch Proof Ø 1.5 mm DIN 42802 connector on one side.
| Code | Electrode Side | Cable Length | Pack |
|---|---|---|---|
| MNC10PDINS | 1 mm Socket | 100 cm | 10 pcs |
| MNC10DDINS | 1.5 mm Touch Proof Pin | 100 cm | 10 pcs |
| MNC10MEDDINS | 0.7 mm Socket | 100 cm | 10 pcs |
| LEAD1026S0 | Snap | 100 cm | 10 pcs |
| LEAD1526S0 | Snap | 150 cm | 10 pcs |
| LEAD2526S0 | Snap | 250 cm | 10 pcs |
Connector Type: Touch Proof Ø 1.5 mm DIN 42802 (headbox side)
Available Colors
Pack of 10 connection cables are available in the following colors:

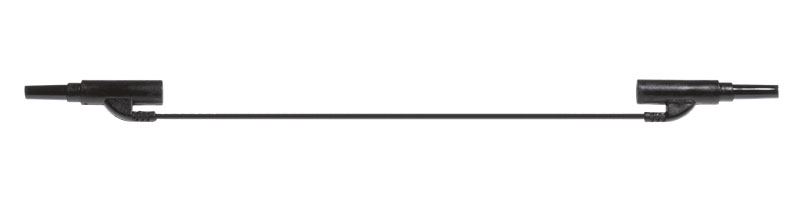

Jump Adapter Cable
The Jump Adapter Cable is designed as a Touch Proof Ø 1.5 mm connector bridge, allowing easy interconnection between EMG electrodes and equipment.
Ensures secure electrical continuity and stable signal transmission while maintaining high insulation quality.
Ideal for use in laboratory and clinical EMG configurations requiring quick bridging or parallel connections.
Ensures secure electrical continuity and stable signal transmission while maintaining high insulation quality.
Ideal for use in laboratory and clinical EMG configurations requiring quick bridging or parallel connections.
| Ref. | Description | Pack |
|---|---|---|
| JUMP262611 |
Touch Proof Ø 1.5 mm connector bridge
| 1 pc |
Connection Blocks
| Ref. | Description | Pack |
|---|---|---|
| PK63F-01326 |
Connection block for 3 connectors Touch Proof Ø 1.5 mm
| 1 pc |
| PK65F-01326 |
Connection block for 5 connectors Touch Proof Ø 1.5 mm
| 1 pc |
Touch Proof Adapters
| Ref. | Description | Pack |
|---|---|---|
| ADDIN2F01 |
Touch Proof Ø 1.5 mm Adapter / 2 mm connector
| 10 pcs |
| ADDIN2F02 |
Touch Proof Ø 1.5 mm Adapter / 2 mm connector
| 10 pcs |
Touch Proof Adapters
| Ref. | Description | Pack |
|---|---|---|
| ADP02DIN1 |
Touch Proof Ø 1.5 mm male adapter / 2 mm pin
| 10 pcs |
| ADP02DIN2 |
Touch Proof Ø 1.5 mm male adapter / 2 mm pin
| 10 pcs |
| ADPM2DIN |
Touch Proof Ø 1.5 mm male adapter / 2 mm spring pin
| 10 pcs |

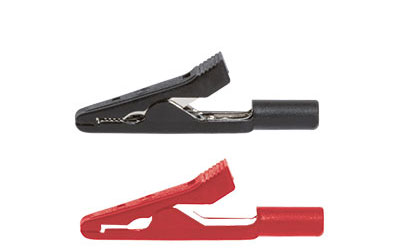

Crocodile adapter
| Ref. | Description | Pack |
|---|---|---|
| CROC01IS |
Crocodile adapter / 2 mm connector
| 10 pcs |
| CROC02IS |
Crocodile adapter / 2 mm connector
| 10 pcs |
Snap Adapters
| Ref. | Description | Pack |
|---|---|---|
| ADPT2F01 |
Snap adapter / 2 mm connector
| 5 pcs |
| ADPT2F02 |
Snap adapter / 2 mm connector
| 5 pcs |
Contact Echovision for access to our full range of medical products.
